Description
1 Independently developed control and feeding system;
2 Adopting a double ball screw and linear sliding rail width adjustment structure to ensure that the guide rails are parallel during the width adjustment process;
3 Adopting a silent guide rail and widening the belt to ensure installation accuracy;
4 Equipped with high-definition camera recognition function, ensuring accuracy and smoother movement;
5 High definition camera positioning MARK point;
6 Built in vacuum pump+cylinder for stable adsorption;
7 Support the mounting of various common packaging components (0402-1206, SMD transistors, diodes, capacitors, resistors, chips, etc.);
Parameter
| Product Name |

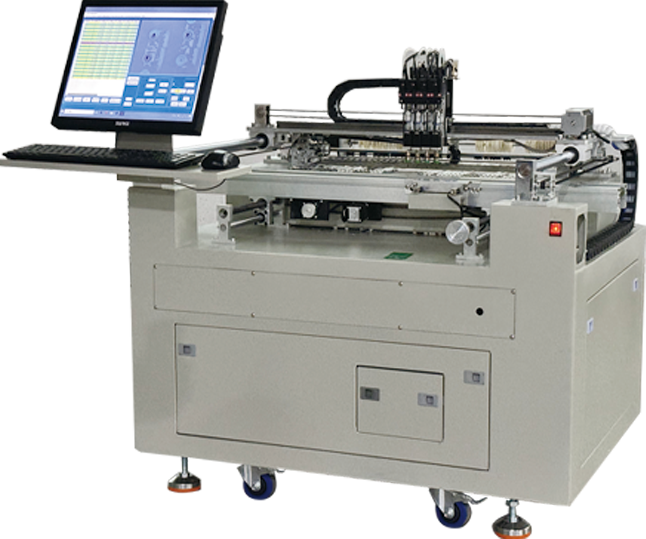

Automatic SMT Machine MT-605 |
| Product Model |
none |
| Placement Head |
Four |
| Theoretical Placement Speed |
10000 CPH |
| Positioning Accuracy |
0.2 mm |
| Net Weight |
(to be certified)kg |
| Applicable Components |
0402-1206, SMD transistors, diodes, capacitors, resistors, chips, etc. |
| Feeder Quantity |
42: 35 for 8mm, 4 for 12mm, 2 for 16mm, 1 for 24mm |
| Circuit Board Size |
240 mm × 600 mm |
| Power Supply |
220V, 50/60Hz, 280W |
| Operating System |
Windows |
| Dimensions |
1100*1090*900(L×W×H) |
| Camera |
5 |
| Fault Detection |
Missing suction detection |
